Bilt Racing 2QT Deep Sump Oil Pan Kit inc. Pickup-Tube Extension, Windage Tray & X51 Baffle

Bilt Racing 2QT Deep Sump Oil Pan Kit inc. Pickup-Tube Extension, Windage Tray & X51 Baffle


In stock

SKU: 106-00.1

All kits include required hardware and sealants. Fits all 1997-2008 M96 and M97 engines (not for GT2, GT3, or Turbo engines).

LN Engineering's parnter, Bilt Racing Service (BRS) is a full service race shop. Its services include full preparation and maintenance of Porsche race cars and custom roll cage manufacturing, as well as their own line of products and solutions for the Porsche and road racing community



The Bilt Racing 2 QT Deep Sump Kit provides as much added oil as our Accusump kit, but takes oil control to a whole new level. We've had pro-racing teams use our kit to solve their oil pressure problems completely.

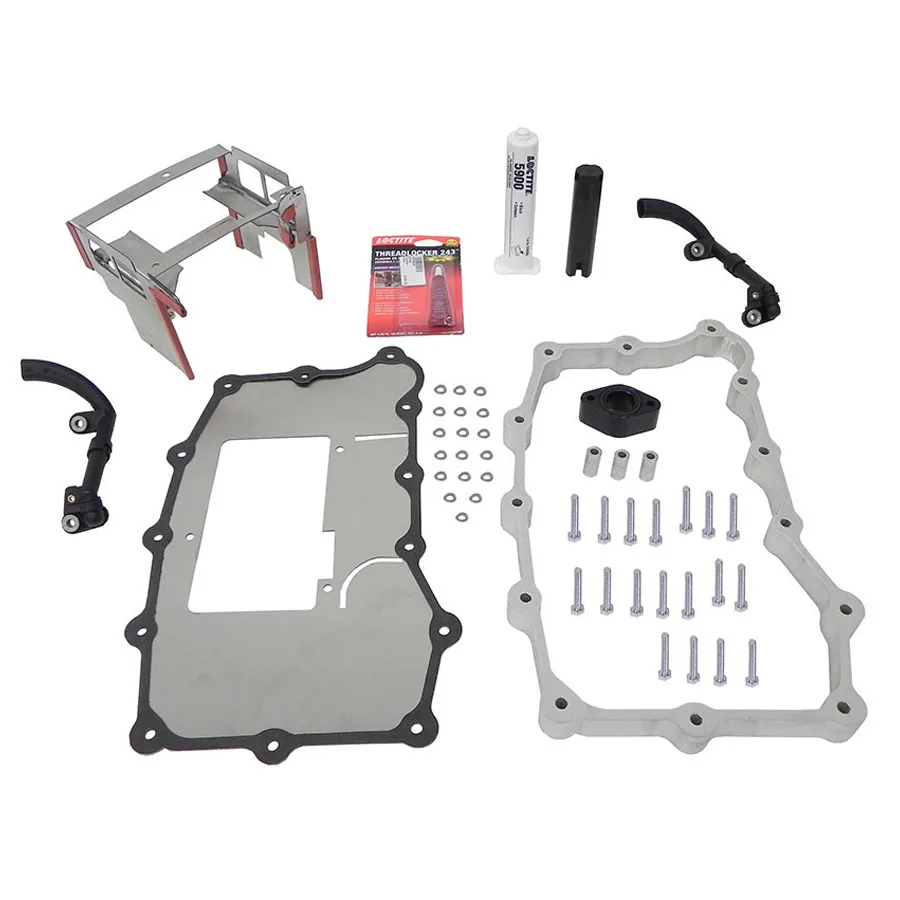

Our 2 quart kit is the only one that includes a custom X51-sytle baffle with hinged oil control flaps to keep oil from moving away from the centrally located pickup, in addition to the windage tray that prevents the additional 2 quarts of engine oil from sloshing out of the sump. Lastly, we include 997 oil return tubes to ensure that oil being pumped back to the sump returns as quickly as possible to the lowered engine oil pickup. To simplify installation, we also include a re-useable gasket between the windage tray and the sump spacer. For added protection, install the Bilt Racing sump guard (coming Spring 2014).


The order of operations for installation of the 2 QT deep sump (after installing the pickup tube and extension) requires the steel baffle plate to be installed first (using the provided Loctite 5900), then the provided gasket (using no sealant), then the 1" pan spacer, then the oil pan itself (using the Loctite 5900).



Deep Sump kit installlation 1
Deep Sump kit installlation 2
Deep Sump kit installlation 3
Deep Sump kit installlation 4
Deep Sump kit installlation 5


Additional Information

Brand BRS
