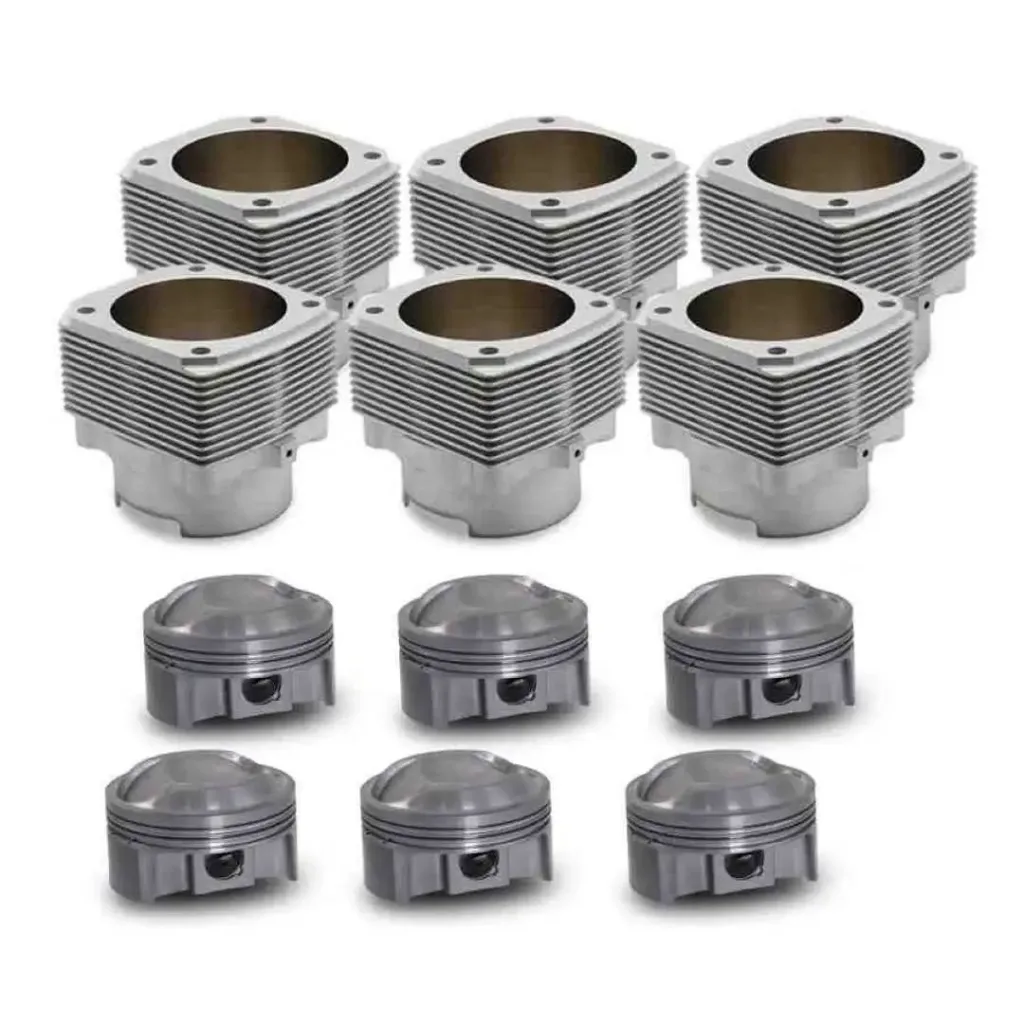

MAHLE Motorsport Pistons Matched with LN Engineering Nickies Cylinders

LN Engineering offers Porsche piston-and-cylinder combinations pairing MAHLE Motorsport forged pistons with LN Engineering Nickies billet-aluminum cylinders for selected aircooled Porsche applications. These combinations are intended for engine builders who want the piston engineering and ring technology of MAHLE Motorsport matched to the strength, cooling, bore-size flexibility, and nickel-silicon-carbide plated bores of Nickies cylinders.

MAHLE Motorsport and LN Engineering have worked together to broaden the range of available Porsche applications, including piston designs developed specifically for use with LN Engineering cylinders. Where original MAHLE piston-and-cylinder sets are no longer available—or where a larger bore, different cylinder configuration, or performance-oriented build is desired—a matched MAHLE Motorsport and Nickies package provides another engineered solution.

Why Pair MAHLE Motorsport Pistons with Nickies?

A piston and cylinder should be selected as a system. Piston alloy, skirt design, ring package, bore material, cylinder finish, operating clearance, compression ratio, and intended use all affect how the finished engine performs. Using a piston developed around the cylinder application helps reduce the compromises that can occur when unrelated components are combined.

• Matched piston and cylinder engineering: selected MAHLE Motorsport pistons are designed specifically for LN Engineering Nickies applications.
• Forged piston construction: MAHLE Motorsport uses modern forged piston designs with application-specific crown, skirt, pin, and ring configurations.
• Nickies billet-aluminum cylinders: provide high strength, ductility, heat transfer, and larger bore capability compared with many traditional cast-cylinder designs.
• Nickel-silicon-carbide plated bores: provide a hard, low-friction running surface engineered for compatible modern piston rings.
• Stock replacement through performance builds: depending on the application, packages can support restoration, displacement increases, higher compression, turbocharged, or competition engines.

MAHLE Motorsport Porsche Piston Technology

MAHLE Motorsport Porsche pistons are machined from forged aluminum alloys selected for the application. Features can include reduced skirt mass, fully machined crowns, precision-finished pin bores, application-specific valve pockets, phosphate treatment to help protect pin bores and ring grooves, and MAHLE’s proprietary GRAFAL® anti-friction skirt coating to reduce drag, wear, and noise.

Modern MAHLE Motorsport piston sets also use application-specific ring packages designed around the piston and bore combination. Ring material, tension, dimensions, and face treatment matter because a ring package that works with one cylinder material or surface finish may not be appropriate for another.

Nickies Aircooled Porsche Cylinders

LN Engineering Nickies cylinders are machined from billet aluminum and finished with a nickel-silicon-carbide bore coating. Billet construction allows control over material properties, cylinder geometry, fin design, spigot dimensions, and available bore sizes while providing the heat transfer and low-friction bore surface expected from a high-performance aluminum Porsche cylinder.

Depending on the Porsche application, Nickies are available in slip-in and machine-in configurations. Slip-in cylinders retain the standard case register where the desired bore allows, while machine-in cylinders use a larger spigot diameter and require corresponding crankcase machining. Some applications may also require cylinder-head register machining.

Which Porsche Engines Use MAHLE Motorsport Pistons and Nickies?

MAHLE Motorsport and Nickies combinations are available for selected aircooled Porsche engines including Porsche 356, 912, and 911-family applications. Exact availability depends on bore size, displacement, compression ratio, cylinder-head configuration, case register, and whether the build uses a slip-in or machine-in cylinder.

For complete application coverage, see our MAHLE Motorsport Porsche Pistons and Cylinder Sets page and our Aircooled Nickies Porsche & VW Cylinders and Pistons page.

Planning an Aircooled Porsche Engine Build?

Choosing the piston and cylinder package is only one part of a successful aircooled Porsche rebuild. Final bore size, compression ratio, deck height, cylinder-head configuration, camshaft, fuel, induction system, ring package, and intended use all need to be considered together.

For a deeper technical overview, see our Ultimate Guide to Porsche Pistons and Cylinders for Air-Cooled 911 Engines. For a broader comparison of piston brands and selection criteria, see our Porsche Pistons guide.

Before Ordering MAHLE Motorsport Pistons and Nickies Cylinders

Confirm the engine type, existing cylinder configuration, desired bore and displacement, compression target, cylinder-head chamber volume, crankcase and head register dimensions, camshaft, fuel, induction type, and intended use before ordering. Piston-to-cylinder clearance and ring end gap are application-specific and should follow the specifications for the actual piston, ring, and cylinder combination being assembled rather than a generic chart.

If you are unsure which combination is appropriate, contact LN Engineering Customer Service before ordering.

---
