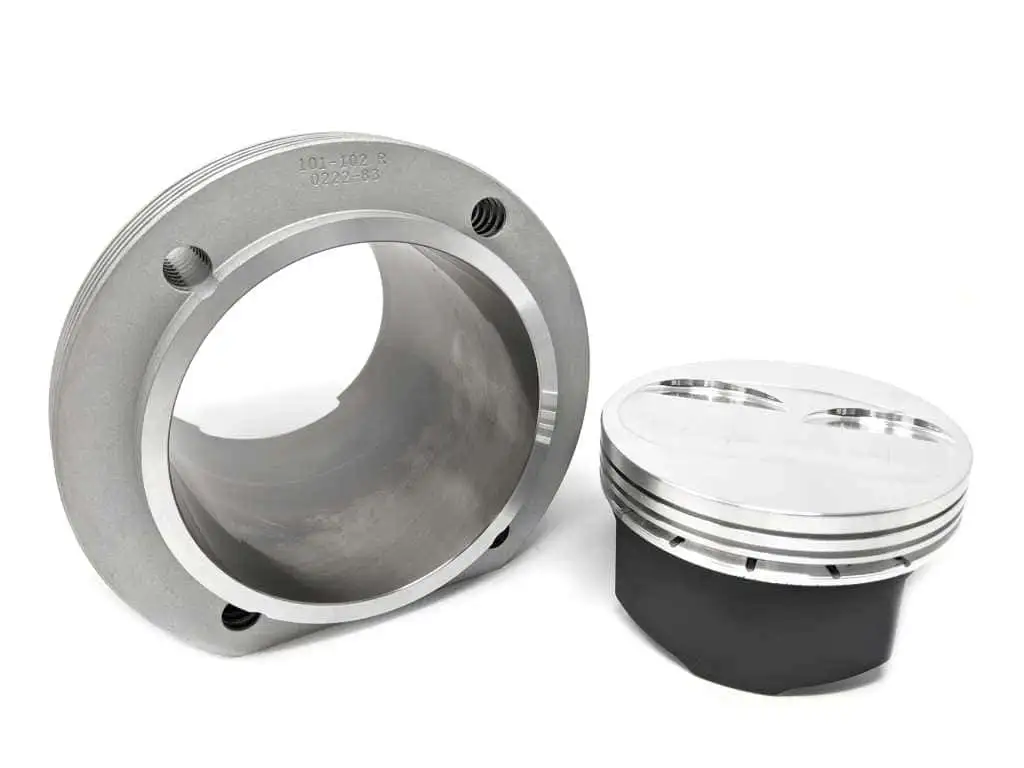

VW Type 4 Porsche 914 912E 102mm Nickies Cylinder and Dished Piston Set for 78mm+ Stroke
VW Type 4 Porsche 914 912E 102mm Nickies Cylinder and Dished Piston Set for 78mm+ Stroke - Image 2
sku: 101-102.1

VW Type 4 Porsche 914 912E 102mm Nickies Cylinder and Dished Piston Set for 78mm+ Stroke

$4,885.00

LN Engineering’s Nickies – The original and genuine solid aluminum CNC billet NSC-plated cylinders provide increased strength and cooling, allowing for increased displacement and performance without compromising reliability for your VW Type 4 or Porsche 914/912 engine.

This 102mm machine-in Nickies cylinder and piston set is configured for 78mm (2563cc total displacement) or longer stroke with 22mm wrist pins. Dish volume 4.1cc. Typical compression ratio of 9.3-9.8:1 depending on actual chamber volume and deck height when paired with our LE200 cylinder heads. Includes Nikasil compatible rings, wrist pins, and wrist pin clips. Requires machining of the case and heads; ARP head studs highly recommended.

Typically in stock for immediate delivery.

in , , , , , , , Brand:

Description

LN Engineering is proud to offer our Nickies™, the ultimate cylinders for your powerful & reliable aircooled engine.

It is not always that you hear high performance and long life paired together, especially when referring to performance aircooled engines. It is very typical, even with high-powered cooling systems, that high-performance engines run too hot, and as you know heat kills! Higher operating temperatures result in a thermally overloaded engine that, among other things, has cylinders that fail to seal against the head and have significantly shorter life spans versus stock displacement engines. Displacement alone doesn’t make it better, Nickies™ make it run cooler and make more power. Our Nickies™ package is the culmination of every technological advance related to pistons and cylinders for your aircooled engine!

Nickies™ make the difference!

Our NSC-plated, CNC billet, solid aluminum Nickies™ provide:

  • Limited lifetime warranty against manufacturing defects on NSC-plating provided by Millennium Technologies
  • Increased cooling significantly reduces cylinder head and oil temperatures
  • Increased strength and ductility
  • Increased horsepower over cast-iron cylinders
  • Significantly reduced cylinder wear and increased ring life due to superior oiling (nickel silicon carbide composite coating is oleophilic i.e. oil-liking)
  • Matched expansion with JE Pistons 2618 Forged Alloy Pistons
  • Greater flexibility with custom or single replacement cylinders
  • Interchangeability with factory cylinders allowing use of factory tin and air deflectors
  • Half-mooned windage-notched skirts for increased horsepower *where applicable
  • Knock sensor provisions *where applicable
  • Cylinders can be re-honed or re-plated at a fraction of the original price
  • The largest available slip-fit and machine-in bore sizes with longevity and durability exceeding that of original equipment cylinders
  • ARP Head Studs or equivalent head studs recommended
  • Nickies™ ruled as legal in SCCA as replacement cylinders per SCCA Technical Services TB 05-10a August 29, 2005.

Application notes:

  • All cylinders supplied with a machined deck surface except 2.0 or cylinders ordered custom with flame ring or sealing ring provisions, which then have a media-blasted surface finish.
  • 2.0 911/914-6 cylinders utilize original head sealing arrangement and accept factory head gasket but are also offered with 2.2 style head configuration at no extra charge.
  • All cylinders are not cut for o-rings or head gaskets.
  • We offer flame-ringing or other modifications to your Nickies™ cylinders for a small fee. Customer must provide specifications for sealing ring or flame ring grooves. Please note that not all cylinders can be cut for factory or aftermarket sealing rings.
  • 964 and 993 cylinders use late-style sealing configuration; early 964 heads must be updated per factory bulletin. Specifications can be found in Porsche Carrera 964 Technical Data Without Guesswork, Bentley Publishers, 15-4, cylinder head machining.
  • 964 and 993 cylinders do not have o-ring provision for engine case. Sealant must be used as on all our other cylinders. Base shims or gaskets are sold separately in custom thicknesses. Curil T or Curil K is recommended for sealing all cylinder bases.
Fits: Porsche 914 912E / VW Type 4

Important: Before ordering, always confirm that the part fits your specific type/model/engine.

Additional information

Weight 22 lbs
