Bilt Racing Service BRS Billet 2.5 QT Deep Sump Oil Pan Kit MY09-16 9A1 for 987.2 997.2 981 991 models
Bilt Racing Service BRS Billet 2.5 QT Deep Sump Oil Pan Kit MY09-16 9A1 for 987.2 997.2 981 991 models - Image 2
Bilt Racing Service BRS Billet 2.5 QT Deep Sump Oil Pan Kit MY09-16 9A1 for 987.2 997.2 981 991 models - Image 3
Bilt Racing Service BRS Billet 2.5 QT Deep Sump Oil Pan Kit MY09-16 9A1 for 987.2 997.2 981 991 models - Image 4
sku: 106-00.5

Bilt Racing Service BRS Billet 2.5 QT Deep Sump Oil Pan Kit MY09-16 9A1 for 987.2 997.2 981 991 models

$2,500.00

Do you know how hot your oil is?

The ideal engine oil temperature for a modern water cooled engine is 220-225F. Track use can bump that to over 300F in models with 3.8 or 4.0 engines.

The LN Engineering Billet (not cast) 2.5 QT Deep Sump Oil Pan Kit inc. pickup tube extension for the 9A1 engine used in 2009-2016 Boxster, Cayman, and 911 models lowers oil temperatures on track up to 40 degrees F.

Also fits 2010-2013 Porsche 911 T and GT2RS 2nd Gen as well as 2010-2016 Porsche 911 Turbo / Turbo S models.

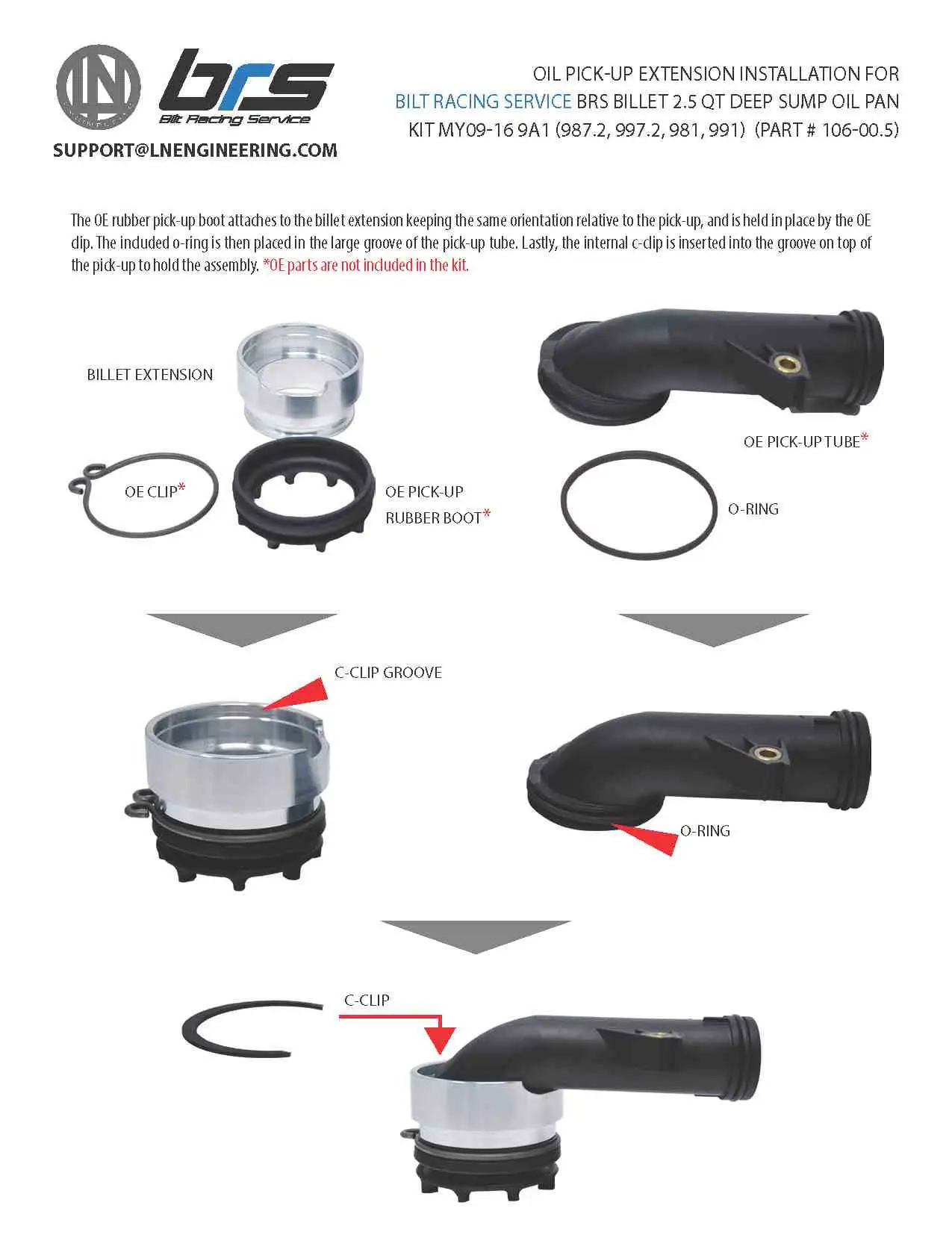

A must for every street and track car with the 9A1 engine. Baffle in photo not included (utilizes the factory oil control baffle). You can reuse the factory profile o-ring or replace with new factory part 9a1-107-325-02. Instructions for installation of the oil pickup extension can be downloaded here.

Does not fit 991.2 or 718 4-cylinder models. For 991.2, use part number 106-00.12 for 718 4-cylinder models, use part number 106-00.13.

Additional options:

106-00.5 Deep Sump Oil Pan - Add Seals / Gasket

Total: $2,500.00
in , , , , , , , , Brand:

Description

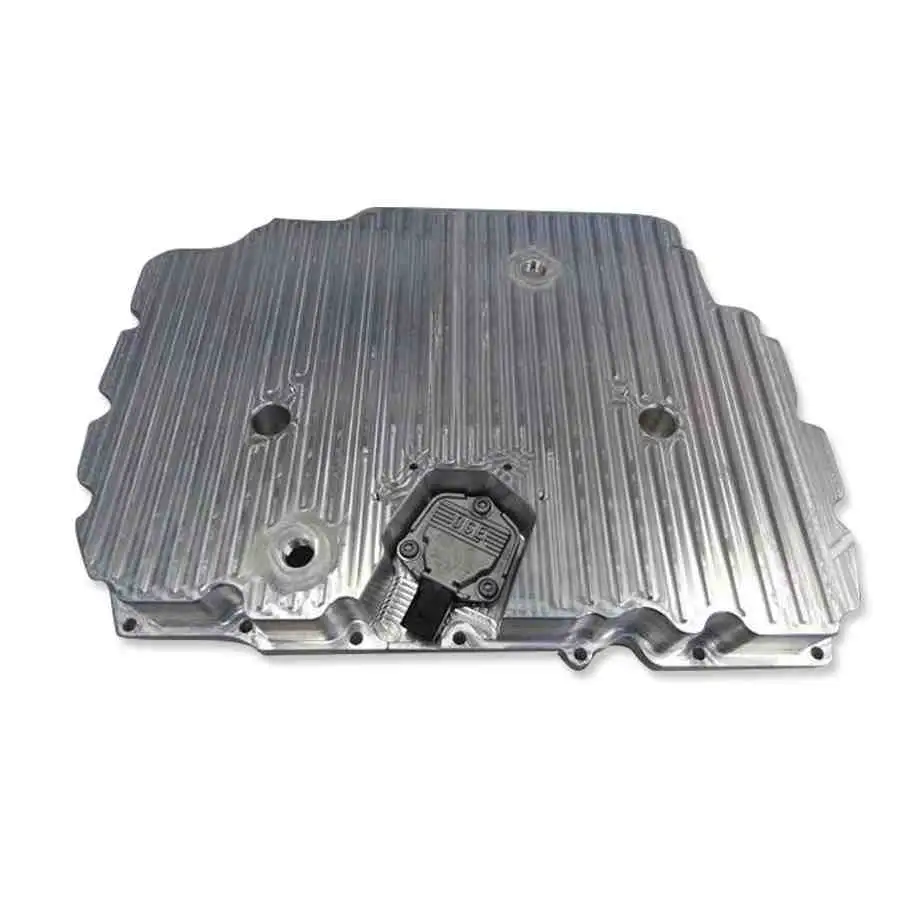

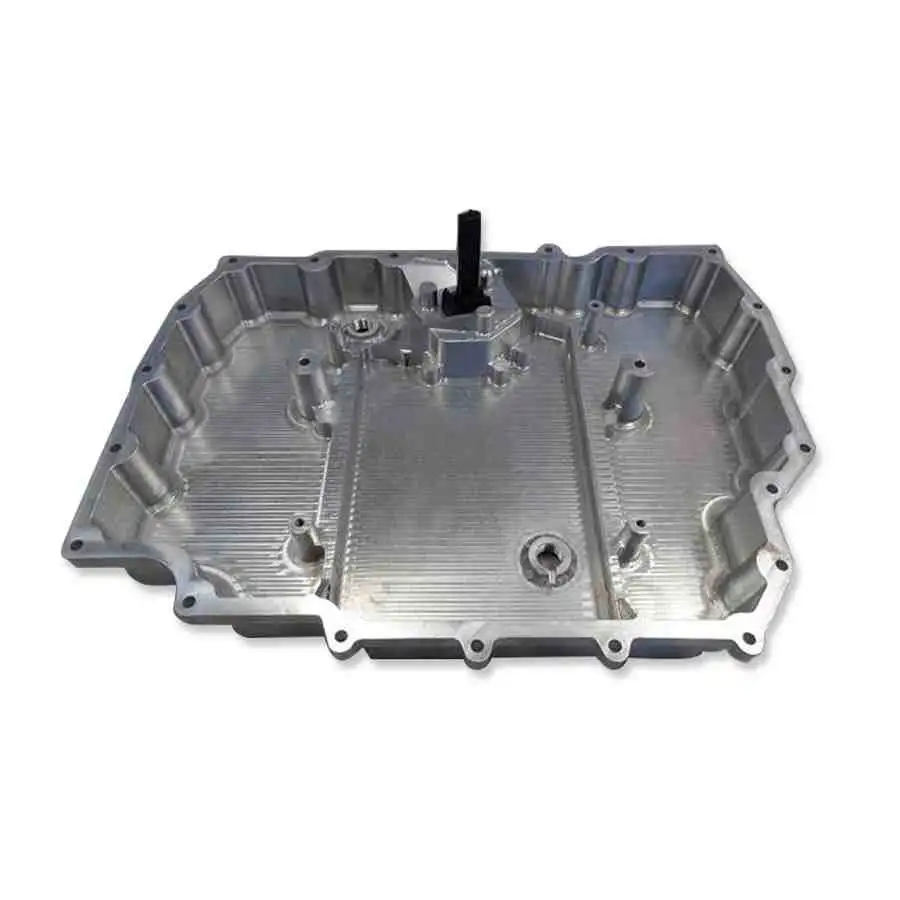

The Bilt Racing 2.5 quart one-piece billet deep sump for the MY09 and later 9A1 DFI engine used in the Boxster, Cayman, and 911 models restores oil fill quantity to 9.5-10 quarts, crucial for engines that see track use. More capacity means it takes longer for oil to get overheated and longer for oil to breakdown and shear out of grade, both are situations which can lead to increased wear or engine failure.

Our billet 2.5 quart deep sump also adds a second drain plug to allow for faster and more complete draining of used engine oil at time of change. Both LN Engineering magnetic drain plugs are include in the kit.

Kit also includes a pickup tube extension to ensure added oil can be utilized. Factory oil control baffle and oil level sender bolt on without modification. No other deep sump on the market allows correct measuring of oil level through the dash interface.

Application Guide


Porsche                911         2016       Carrera,
Carrera 4, Carrera 4 Black Edition, Carrera 4S, Carrera Black Edition, Carrera
S, Targa 4, Targa 4S – 3.4L H6 – Gas, 3.8L H6 – Gas

Porsche                911         2015       Carrera,
Carrera 4, Carrera 4S, Carrera S, Targa 4, Targa 4S – 3.4L H6 – Gas, 3.8L H6 –
Gas

Porsche                911         2014       Carrera,
Carrera 4, Carrera 4S, Carrera S, Targa 4, Targa 4S – 3.4L H6 – Gas, 3.8L H6 –
Gas

Porsche                911         2013       Carrera,
Carrera 4, Carrera 4S, Carrera S, Turbo, Turbo S – 3.4L H6 – Gas, 3.8L H6 – Gas

Porsche                911         2012       Carrera,
Carrera 4, Carrera 4 GTS, Carrera 4S, Carrera GTS, Carrera S, Targa 4, Targa 4S,
Turbo, Turbo S  – 3.4L H6 – Gas, 3.6L H6 – Gas, 3.8L H6 – Gas

Porsche                911         2011       Carrera,
Carrera 4, Carrera 4S, Carrera GTS, Carrera S, GT3, GT3 RS, Speedster, Targa 4,
Targa 4S, Turbo, Turbo S – 3.6L H6 – Gas, 3.8L H6 – Gas

Porsche                911         2010       Carrera,
Carrera 4, Carrera 4S, Carrera S, GT3, Targa 4, Targa 4S, Turbo – 3.6L H6 – Gas,
3.8L H6 – Gas

Porsche                911         2009       Carrera,
Carrera 4, Carrera 4S, Carrera S, GT3, Targa 4, Targa 4S – 3.6L H6 – Gas, 3.8L
H6 – Gas

Porsche                Boxster                2016
Base, Black Edition, GTS, S, Spyder – 2.7L H6 – Gas, 3.4L H6 – Gas, 3.8L H6 –
Gas

Porsche                Boxster                2015
Base, GTS, S – 2.7L H6 – Gas, 3.4L H6 – Gas

Porsche                Boxster                2014
Base, S – 2.7L H6 – Gas, 3.4L H6 – Gas

Porsche                Boxster                2013
Base, S – 2.7L H6 – Gas, 3.4L H6 – Gas

Porsche                Boxster                2012
Base, S, S Black Edition, Spyder – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                Boxster                2011
Base, S, Spyder – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                Boxster                2010
Base, S – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                Boxster                2009
Base, S – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                Cayman                2016
Base, Black Edition, GT4, GTS, S – 2.7L H6 – Gas, 3.4L H6 – Gas, 3.8L H6 – Gas

Porsche                Cayman                2015
Base, GTS, S – 2.7L H6 – Gas, 3.4L H6 – Gas

Porsche                Cayman                2014
Base, S – 2.7L H6 – Gas, 3.4L H6 – Gas

Porsche                Cayman                2012
Base, R, S – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                Cayman                2011
Base, S – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                Cayman                2010
Base, S – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                Cayman                2009
Base, S – 2.9L H6 – Gas, 3.4L H6 – Gas

Porsche                911         2019       GT2 RS,
Turbo, Turbo S – 3.8L H6 – Gas

Porsche                911         2018       GT2 RS,
Turbo, Turbo S, Turbo S Exclusive Series – 3.8L H6 – Gas

Porsche                911         2017       Turbo, Turbo
S – 3.8L H6 – Gas


Cross reference: 9A1 107 325 02, 9A1-107-325-02, 9A1.107.325.02, 9A110732502, 9A1 107 325 00, 9A1-107-325-00, 9A1.107.325.00, 9A110732500, 9A110703275, 9A1-107-032-75; 9A110703200; 9A110703210; 9A110703270; 9A110703271; 9A110732001

Fits: Porsche 981, Porsche 987.2, Porsche 991, Porsche 997.2

Important: Before ordering, always confirm that the part fits your specific type/model/engine.

Additional information

Weight 20 lbs
